Add to the basket for $49 US dollars

Paper/Picture 2 DXF 3.0

Convert CAD drawings from paper sheets or pictures into digital DXF files for editing in your CAD application.

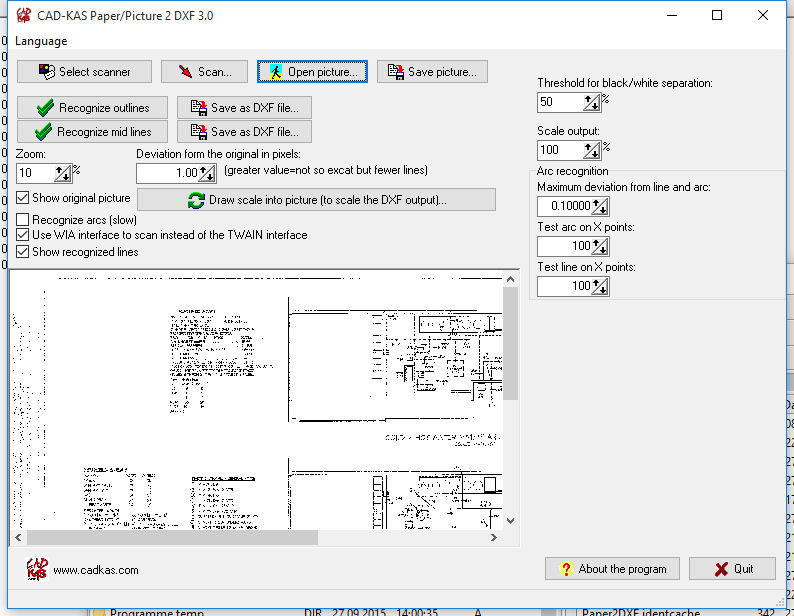

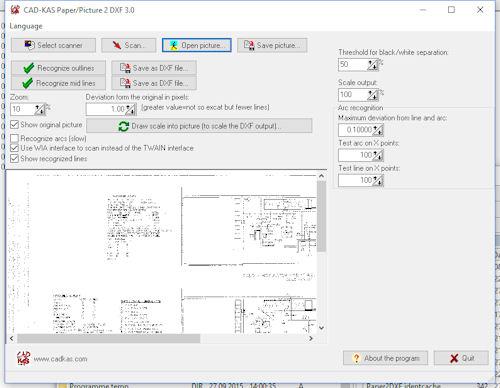

Scan a drawing or open a picture from your hard disk. The program recognizes the lines and saves the result as a DXF file.

It first converts the image into a black and white image. You see a color histogram so you can see where to set the threshold to decide if a color should be threaded as black or white.

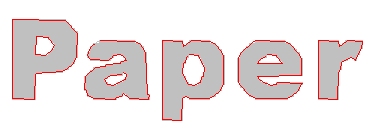

Outlines

Our program can recognize the outlines of an area:

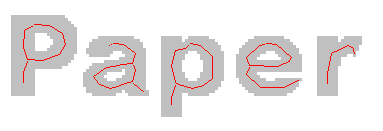

Center lines/Mid lines

But it can also recognize the center lines/mid lines:

This saves much of time and money if you need to import paper drawings into your CAD application.

Download the free trial version

Order full version for $49

To vectorize a picture manually you can use our program Trace and vectorize 1.0.
To extract the lines from a pdf file you can use PDF 2 DXF.

To do get a level view of a drawing on a photo and convert it to DXF you can use Photogrammetric image rectification.
